OpenThread
OpenThread released by Nest is an open-source implementation of Thread®. Nest has released OpenThread to make the networking technology used in Nest products more broadly available to developers, in order to accelerate the development of products for the connected home.
With a narrow platform abstraction layer and a small memory footprint, OpenThread is highly portable. It supports both system-on-chip (SoC) and network co-processor (NCP) designs.
With a narrow platform abstraction layer and a small memory footprint, OpenThread is highly portable. It supports both system-on-chip (SoC) and network co-processor (NCP) designs.
Thread Certified component
OpenThread implements all features defined in the Thread 1.1.1 Specification. This specification defines an IPv6-based reliable, secure, and low-power wireless device-to-device communication protocol for home applications.
Features
OpenThread implements all Thread networking layers (IPv6, 6LoWPAN, IEEE 802.15.4 with MAC security, Mesh Link Establishment, Mesh Routing) and device roles, as well as Border Router support.
Application services
- IPv6 configuration and raw data interface
- UDP sockets
- CoAP client and server
- DHCPv6 client and server
- DNSv6 client
Enhanced Features
- Child Supervision
- Inform Previous Parent on Reattach
- Jam Detection
- Periodic Parent Search
Border Router
- Web UI for configuration and management
- Thread Border Agent to support an External Commissioner
- NAT64 for connecting to IPv4 networks
- Thread interface driver using wpantund
How will you use OpenThread?
If you're interested in contributing to the ongoing development of OpenThread, then the OpenThread GitHub repository is for you. There you will find all the code, including information on how to contribute, our style guide, code of conduct, licensing, and much more.
If you want to use OpenThread in your own products or for personal deployment, check the options below.
If you want to use OpenThread in your own products or for personal deployment, check the options below.
Deploy a Thread network
Determine the hardware and platform design you wish to use to build and deploy your own Thread network. Add a Border Router to connect your Thread network to other network layers, such as Wi-Fi or Ethernet.
Develop applications on top of a Thread network
Use the API Reference as a guide to all application development. IPv6, UDP, CoAP, DHCPv6, DNSv6...it's all there.
Port OpenThread to a new hardware platform
Check out our Porting Guide, which walks you through all the steps necessary to port OpenThread to a new hardware platform.
Get Thread Certification for your OpenThread product
OpenThread can be used for certification by the Thread Group. As a Thread reference stack, OpenThread makes certification easy.
News
Bringing the internet to low-power IoT devices
OpenThread was at Google I/O 2018! Check out the video to watch our session, which
gives a brief overview of Thread and how developers can quickly build IoT
solutions using OpenThread.
I/O guide to Nest and OpenThread
Take a look inside the Nest IoT Sandbox display at Google I/O 2018, where we
showcased a number of OpenThread-supported developer platforms, the Thread Ready
Nest Secure system, and
other Nest products such as
Nest Hello and the
Nest
x Yale Lock.
Quality metric dashboards added
Feb 15, 2019
We've added a number of Data Studio dashboards that cover quality metrics for OpenThread. These dashboards showcase results from tests for latency, throughput, and certification test cases.
We've added a number of Data Studio dashboards that cover quality metrics for OpenThread. These dashboards showcase results from tests for latency, throughput, and certification test cases.
Support for Qorvo QPG6095 added
Feb 6, 2019
The QPG6095 Zigbee/Thread/BLE Smart Home Communications Controller provides a fully integrated solution for ultra-low power wireless communications for Smart Home sentroller devices. OpenThread running on the Qorvo QPG6095 is a Thread Certified Component.
The QPG6095 Zigbee/Thread/BLE Smart Home Communications Controller provides a fully integrated solution for ultra-low power wireless communications for Smart Home sentroller devices. OpenThread running on the Qorvo QPG6095 is a Thread Certified Component.
TI's CC1352 is now Thread Certified with OpenThread
Feb 6, 2019
The CC1352 device is part of the SimpleLink™ microcontroller (MCU) platform which consists of Wi-Fi®, Bluetooth® low energy, Sub-1 GHz, Thread, ZigBee, 802.15.4 and host MCUs. OpenThread running on the TI CC1352 is a Thread Certified Component.
The CC1352 device is part of the SimpleLink™ microcontroller (MCU) platform which consists of Wi-Fi®, Bluetooth® low energy, Sub-1 GHz, Thread, ZigBee, 802.15.4 and host MCUs. OpenThread running on the TI CC1352 is a Thread Certified Component.
Who supports OpenThread?
What products use OpenThread?
The following products use OpenThread and support the core requirements of the Thread Specification.
Nest Secure
The Nest Secure alarm
system, featuring Nest Guard and Nest Detect. Thread Ready.
Nest Cam IQ Indoor
A best-in-class security
camera with top-of-its-class brains.
Nest Cam IQ Outdoor
A weatherproof and
tamper-resistant outdoor security camera.
Nest Hello
The doorbell that lets
you know who's there.

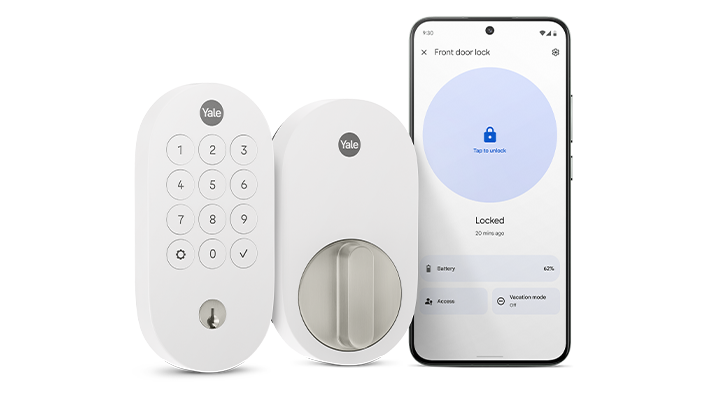

Nest x Yale Lock
A tamper‑proof, key‑free
deadbolt that can be locked and unlocked from anywhere.
Nest Connect
Connects the Nest x Yale
Lock to the internet, and serves as a range extender for the Nest Secure system.
Nest Thermostat E (EU)
It's easy to save energy.
Place it wherever you like in your home.
Nest Heat Link E (EU)
Connects to your heating
system and works with the Nest Thermostat E to turn on and off or modulate the
heat.
Start using OpenThread today
